Exploring TigerBeetle

Who am I?

Craig Rodrigues
Software Engineer in Silicon Valley

• Interested in distributed systems
• Interested in studying interesting topics in this space
• Building a community of like-minded people where we can study together and learn

Why This Study Group?

I was inspired to start this study group after taking Chiradip Mandal's course:

Data Algorithms

Mastering this topic requires constant study and review of:

• Papers
• Algorithms
• Cutting-edge implementations

Guiding Principles

We choose presentations that:

1. No product pitches — substance over sales
2. Adhere to computer science fundamentals — grounded in first principles
3. Interesting claims must be verifiable — papers, code, benchmarks, not vibes
4. Solve a specific problem that can help the industry at large — transferable lessons, not navel-gazing

Study Group — and Tech Evaluation & Critique

We are a study group: we learn together from papers, systems, and implementations.

We also act as a tech evaluation and critique group:

• Examine claims carefully — architecture, performance, correctness
• Ask hard questions: what works, what doesn’t, under what assumptions?
• Separate marketing from engineering substance
• Leave with a clearer judgment of when a technology is (or isn’t) a fit

Study Group Structure

• Before the meeting: participants are encouraged to study the prerequisite material
• During the event: first 30 minutes presentation, next ~20 minutes open discussion
• Follow-up discussion on the Designing Ultra Large Scale Systems Discord

Pre-work Materials

1. Read: Kyle Kingsbury's analysis of TigerBeetle
2. Read: Joran Greef's blog post
3. Review: TigerBeetle system architecture docs
4. Read: Jim Gray's paper "A Measure of Transaction Processing Power" (defines the classic debit/credit benchmark)
5. Watch: "1000x: The Power of an Interface for Performance" by Joran Dirk Greef (~1hr) (Joran discusses the SQL implementation and this paper)

TigerBeetle

• A financial transactions database purpose-built for high-performance OLTP
• Reimagines debit/credit as a first-class primitive (not just SQL queries and locks)
• Aims for massive gains in correctness, safety, and speed at scale

TigerBeetle

• Strict consistency with double-entry bookkeeping built-in
• Batch thousands of transfers per query; eliminates traditional contention bottlenecks
• Designed from first principles: durability, multi-cloud availability, extreme throughput

What We'll Cover

• What a debit/credit is in a financial system
• How debit/credit is implemented in traditional SQL (as defined in Jim Gray's paper A Measure of Transaction Processing Power)
• Existing problems and scalability limitations
• How TigerBeetle models schema (spoiler: no schema language)
• Comparison with TigerBeetle’s transfer-first interface
• Performance vs general-purpose SQL (interface, batching, contention)

Instant Payment Systems

National-scale real-time rails — debit/credit at country scale:

• India — UPI (Unified Payments Interface)
• Brazil — PIX
• U.S. — The Clearing House RTP, Federal Reserve FedNow

DebitCredit Benchmark

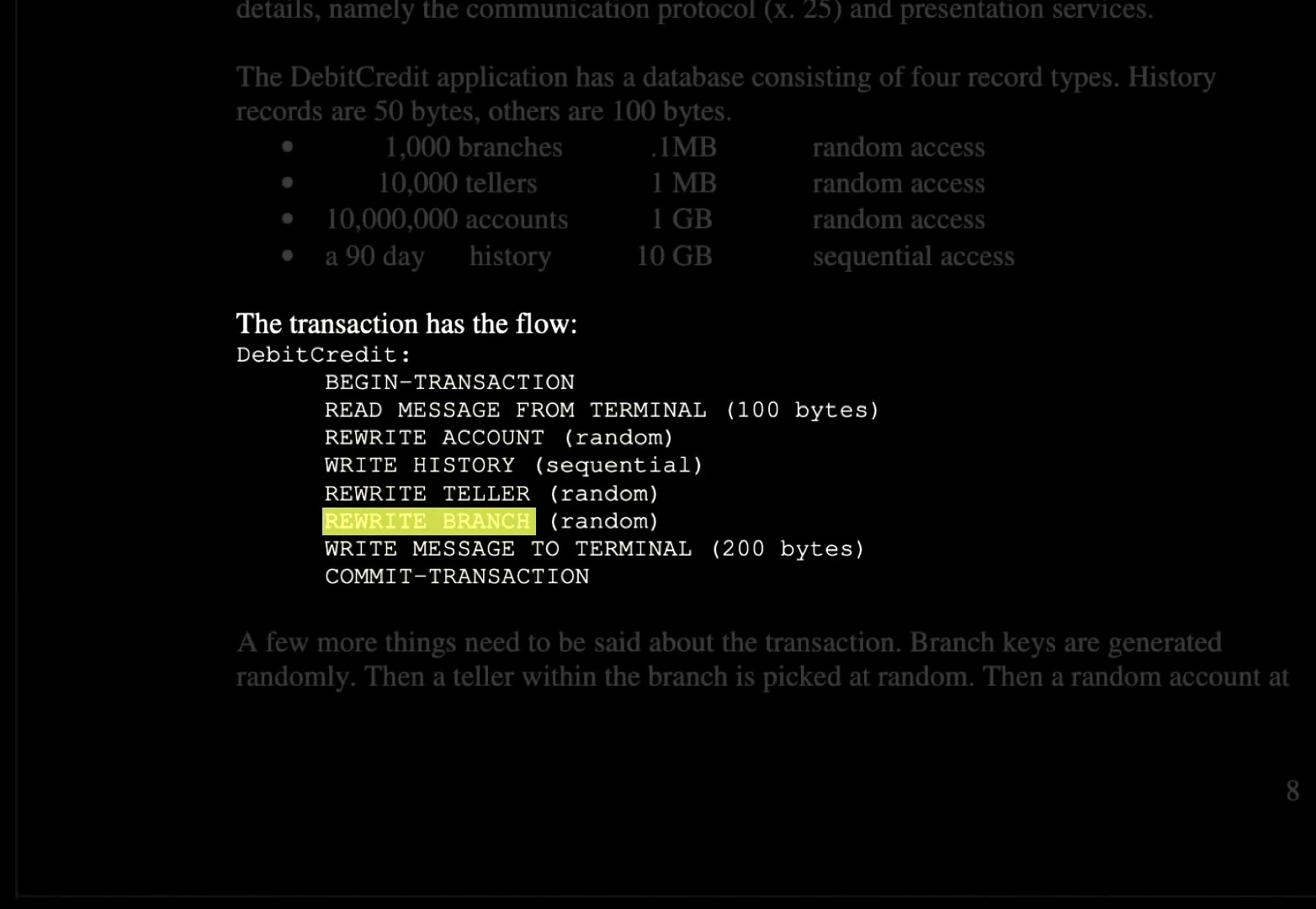

Jim Gray, A Measure of Transaction Processing Power (1985)

The canonical OLTP workload and measure of "transactions per second".

Gray’s DebitCredit pseudocode:

DebitCredit:
  BEGIN-TRANSACTION
    READ MESSAGE FROM TERMINAL (100 bytes)
    REWRITE ACCOUNT (random)
    WRITE HISTORY (sequential)
    REWRITE TELLER (random)
    REWRITE BRANCH (random)
    WRITE MESSAGE TO TERMINAL (200 bytes)
  COMMIT-TRANSACTION

DebitCredit Benchmark

Database scale in Gray’s paper (scaled with TPS):

Every transaction rewrites one account, one teller, and one branch — plus appends history.

DebitCredit Benchmark

Sample SQL implementation — debit:

BEGIN TRANSACTION;

-- Debit one account
UPDATE accounts
SET balance = balance - :amount
WHERE id = :from_id;

DebitCredit Benchmark

Sample SQL implementation — credit & history:

-- Credit another account
UPDATE accounts
SET balance = balance + :amount
WHERE id = :to_id;

-- Record history (double-entry)
INSERT INTO history (from_id, to_id, amount, ts)
VALUES (:from_id, :to_id, :amount, NOW());

COMMIT;

Impedance Mismatch

One financial transfer ≠ one database round-trip.

• For each debit/credit, a general-purpose DB often runs 10–20 SQL queries
• Data moves to the app over the network; the app decides; results are written back
• Balance checks, updates, and history inserts are separate statements — not one primitive

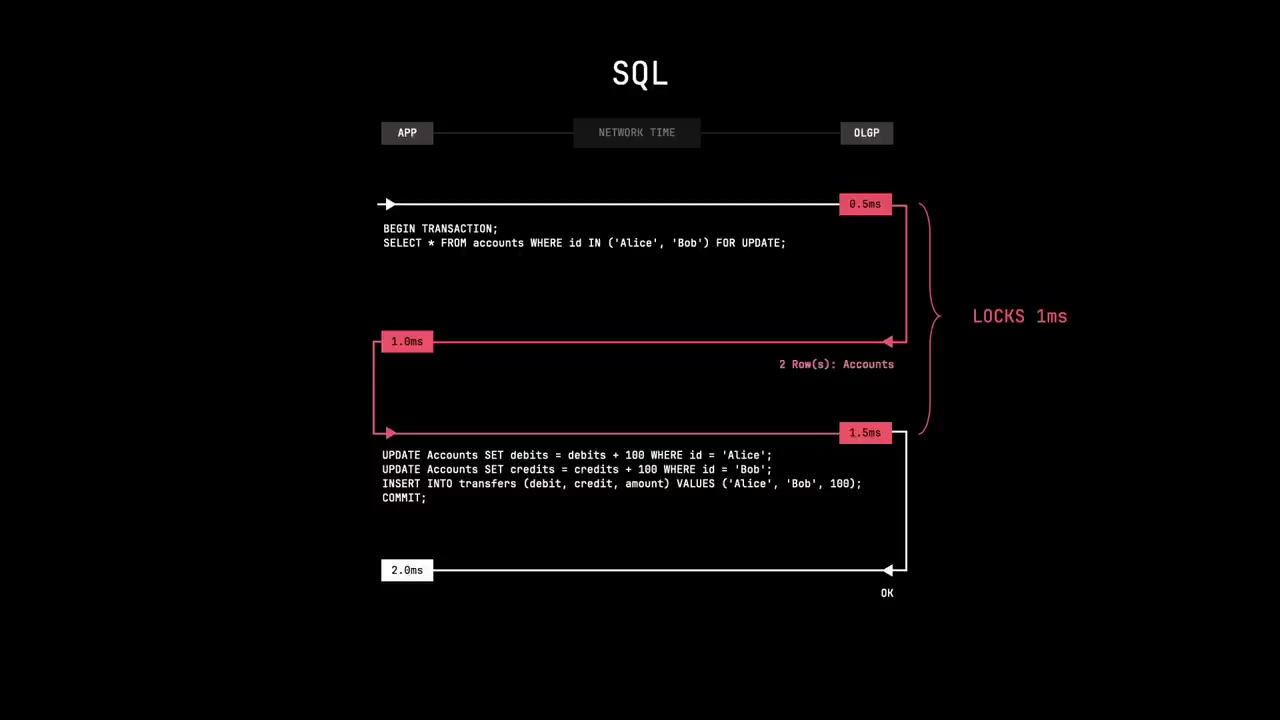

Locks × Network RTT

Concurrency control collides with distributed reality.

• Row locks are held while waiting on the network
• Even a few RTTs per transfer cap how many transfers can touch the same rows per second
• More hardware does not fix this — the limit is structural, not just “CPU is too slow”

REWRITE BRANCH → Hot Account Contention

Gray’s pseudocode routes every transaction through a branch row.

• 10M customer accounts, but only 1K branches (and few tellers)
• REWRITE BRANCH is on the critical path of almost every DebitCredit
• That branch row becomes a hot account: locked by nearly all concurrent transfers
• Result: effective serialization — app-tier scale-out cannot remove a single-row bottleneck

Joran’s point in the talk: OLTP is characterized by this intrinsic contention, not just random I/O.

Correctness Lives Outside the Database

Business rules are reimplemented in application code.

• “Enough balance?”, pending funds, timeouts, double-entry invariants → app-layer
• Easy to get wrong under retries, partial failures, and concurrent transfers
• The DB guarantees ACID for SQL statements — not debit/credit as a domain

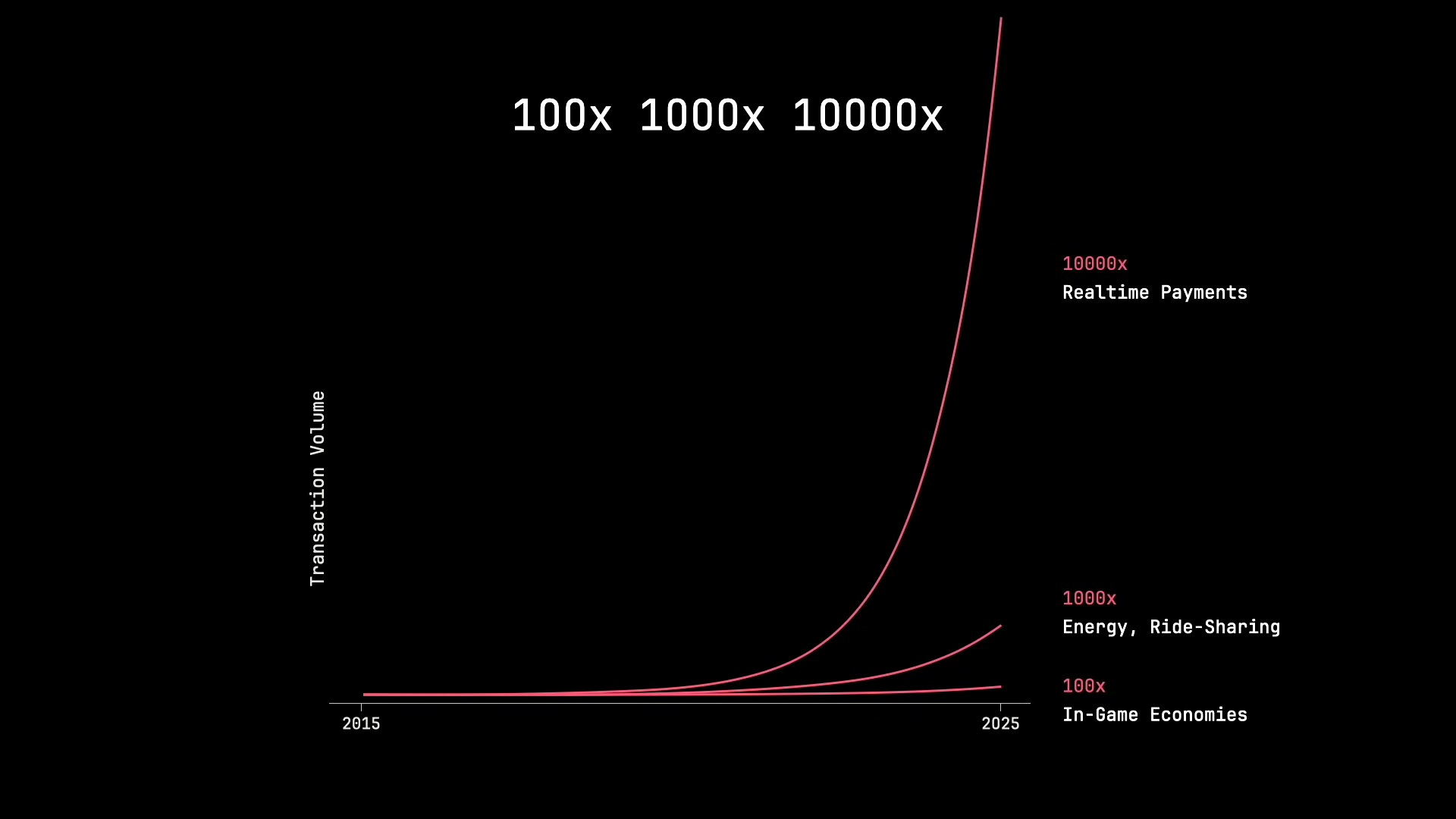

The World Got More Transactional

General-purpose OLTP designs are decades old; demand is not.

• Instant payments, gaming economies, energy, per-second cloud billing, …
• Orders of magnitude more transfers — same fundamental row-lock + RTT model
• Joran’s thesis: fix the interface (debit/credit as a first-class primitive), not only the engine

Specialize the Database

TigerBeetle is not a general-purpose OLTP store.

• Not “Postgres, but faster for money”
• Purpose-built for accounts, transfers, and balances
• Designed to sit beside a general-purpose DB (Postgres, etc.), not replace it

See: System architecture

Not SQL — and not “schema-less”

In a general-purpose database you declare structure:

CREATE TABLE accounts (...);
CREATE TABLE transfers (...);
ALTER TABLE ... ADD COLUMN ...;

That is DDL (Data Definition Language): you invent tables, columns, and migrations.

TigerBeetle has no DDL, no migrations, no user-defined tables.

The Schema Is Fixed — Built Into the Product

TigerBeetle ships with a universal, fixed schema for double-entry bookkeeping.

You do not design tables.
You use the tables the database already is.

See: Data modeling

Debit/Credit = The Universal Schema

TigerBeetle’s claim: debit/credit is minimal and complete for exchanges of value.

• Two entity kinds: accounts and transfers
• One invariant: every debit has an equal and opposite credit
• Same shape for payments, refunds, FX legs, reservations, … any product line

New product feature → usually new codes / accounts, not ALTER TABLE.

Fixed Fields, Fixed Sizes

Each record has a closed set of fields (fixed-width integers, not free-form rows).

Account (conceptually): id, ledger, code, flags, debits/credits, user_data_*, timestamp

Transfer (conceptually): id, debit account, credit account, amount, ledger, code, flags, user_data_*, timestamp

• No arbitrary strings in the hot path
• No “add a JSON column later”
• Immutability + fixed layout → simpler correctness and performance

How Do You “Configure” Types Then?

Soft typing with integers — meanings live in the app / OLGP DB.

Map numbers names in your control-plane DB (or hard-code enums).
Never fetch that metadata on the hot transfer path.

See: Ledger, account, and transfer types

You Speak an API — Not a Schema Language

Clients call fixed operations:

• create_accounts / create_transfers
• Lookups and queries by id / filter

// Not CREATE TABLE — create *instances* of the fixed Account type
client.createAccounts([
  { id: 1n, ledger: 1, code: 1, flags: 0 }, // Account A
  { id: 2n, ledger: 1, code: 1, flags: 0 }, // Account B
]);

Debit / Credit as a First-Class Primitive

The interface is the domain model.

One API call ≈ one business transfer — not a pile of SQL statements.

DebitCredit in TigerBeetle

Same idea as Jim Gray’s DebitCredit — but as a single transfer primitive, not multi-statement SQL.

Transfer $1 from Account A → Account B (one request):

client.createTransfers([{
  id: id(),                  // idempotency key
  debit_account_id: 1n,      // Account A (from)
  credit_account_id: 2n,     // Account B (to)
  amount: 1n,                // $1 (or 100n for cents)
  ledger: 1,
  code: 1,                   // app-defined reason
}]);

No separate UPDATE balance, no history INSERT — the engine debits, credits, and records the transfer atomically.

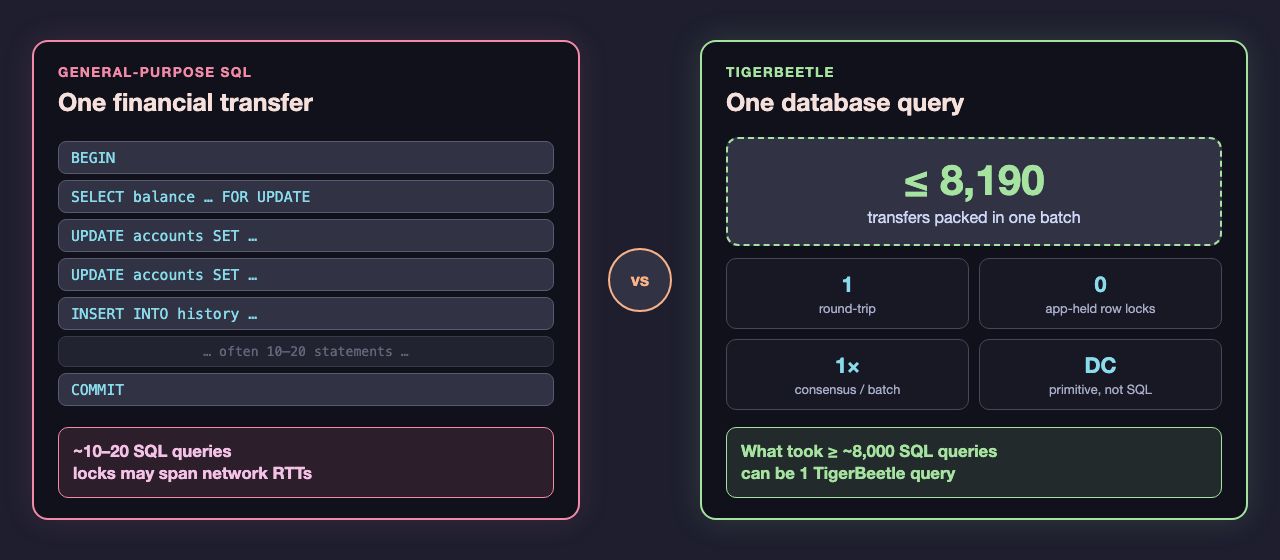

Fix the Impedance Mismatch

Move the work into the database boundary.

• Pack thousands of transfers in a single query (batching)
• Amortize network RTTs: many financial txs per round-trip
• Application submits intent; engine applies debit/credit atomically

Before: ~10–20 SQL queries per transfer
After: up to thousands of transfers per query

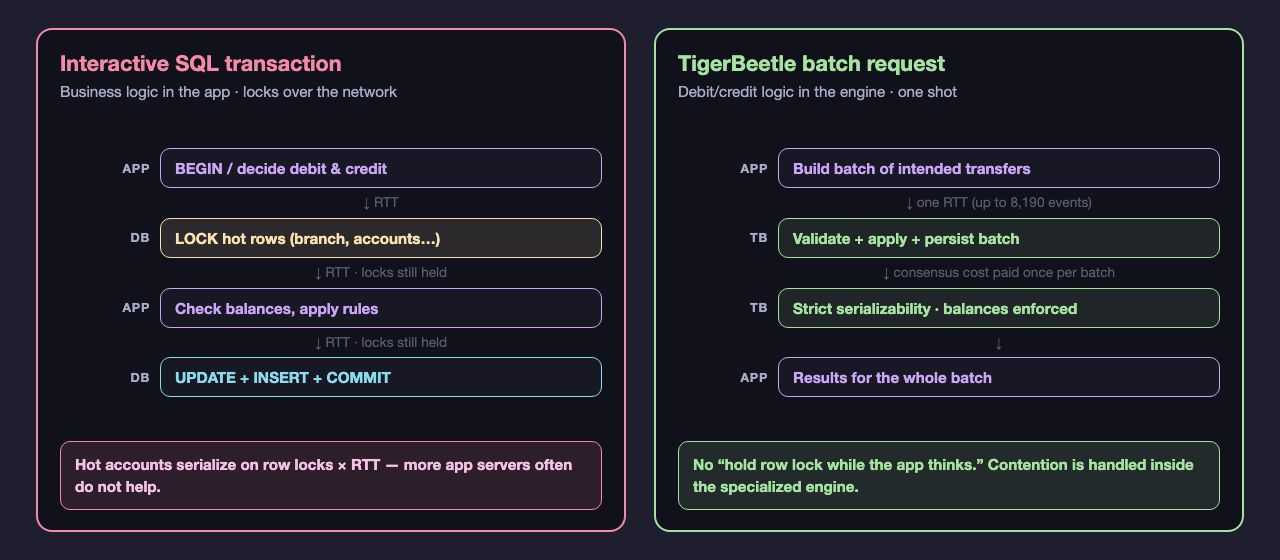

Eliminate the Row-Lock Trap

Specialization enables a different execution model.

• No classic “hold row locks while the app thinks over the network”
• Engine processes a batch of transfers in one place, with strict serializability
• Hot accounts still exist — but the design is built for that contention pattern

Performance comes from the interface, not only from faster disks.

Correctness Inside the Engine

Domain rules are features, not app boilerplate.

• Double-entry bookkeeping enforced by the database
• Balance limits / insufficient funds rejected by the engine
• Pending transfers, timeouts, post/void — financial workflow as primitives

Fewer places for “almost correct” money code in the application.

Split the Planes

Use the right tool for each job — including where schema lives.

TigerBeetle records who moved how much; the general-purpose DB stores who they are and what ledger/code mean.

The Idea in One Line

Don’t model debit/credit in a general-purpose database.
Make a database whose core abstraction is debit/credit.

That is how TigerBeetle attacks impedance mismatch, lock×RTT limits, and domain correctness at once.

Performance — Takeaways for Debit/Credit

Independent benches vary (often multi-×, not always 1000× wall-clock). The structural claim is: fix the impedance mismatch, then engineer the hot path.

Acknowledgments

Thank you:

• Chiradip Mandal — https://chiradip.com
  Inspiration for this study group and for deep study of data algorithms
• Joran Dirk Greef and the TigerBeetle team — https://tigerbeetle.com
  Ideas, writings, and talks on debit/credit as a first-class primitive
• Kyle Kingsbury — https://jepsen.io
  Independent analysis that helps us evaluate systems carefully

Acknowledgments (AI)

These slides were prepared with the help of Grok AI.

Homework (optional)

• Read Gray’s paper — A Measure of Transaction Processing Power — and reproduce DebitCredit in SQL on a database like Postgres
• Read the TigerBeetle docs, set up TigerBeetle, and implement a simple debit/credit
• Share your efforts and results on the Designing Ultra Large Scale Systems Discord

Upcoming Meetings

• August: Exploring TigerBeetle: Viewstamped Replication (VR) consensus protocol
• September: Using Antithesis for exploring state spaces and fault injection
